How to make a choropleth map with Google Fusion Tables

Choropleth map of cycling in Hackney wards

Data mapping is becoming an increasingly popular way of visualising information. It’s quite straightforward to make a choropleth map and in this post I’m going to show you how to make one using Google Fusion Tables.

A fortnight ago I made a choropleth map to go alongside this story for the Hackney Post.

Choropleth map of cycling in Hackney wards
Choropleth map of cycling in Hackney wards

The map was designed to show the increase in the number of Hackney residents commuting to work by cycling over the last decade. I thought I’d use a map as it is more visual and quickly tells the story. Stating that “Dalson had a rise of 10.9%, whereas Hoxton’s increase was only 5.3%, unlike Clissold…” would undeniably bore the reader.

I’m briefly going to show you how to create your own choropleth map.

The data that I used is from the Greater London Authority’s website and was published in October.

First of all I created a Google Docs spreadsheet showing the percentage increase of every Hackney ward:

Percentage point increase for cycling in Hackney by ward

Once I had manually entered these data, I put them on to a map using Google Fusion Tables. Once you load up Fusion Tables, all you need to do is import your Google Docs spreadsheet:

Importing a spreadsheet to Google Fusion Tables
Importing a spreadsheet to Google Fusion Tables

Now you need to find the map data to visualise the cycling data on a map. What you’re looking for here is a “KMZ Shapefile”. Thankfully, Ændrew Rininsland (former City Uni hack, now News Developer at The Times) uploaded a shapefile of all Hackney ward map data. If you download any shapefile of the area that you’re trying to map, that should work fine. Next, upload the .kmz file to your Google Drive.

Now, go back to the Google Fusion Table and click:

Merging in Google Fusion Tables

Select the correct .kmz file and merge it based on the field name “ward”, as this will be the same in each table.

This will show you something like this:

merged map in Google Fusion Tables

Now, to shade it in different colours dependent on intensity, go to feature map > change feature styles > buckets:

Colour shading on Google Fusion Tables

This will end up with something like this:

Unmarked choropleth map of Hackney Wards

Then all I did was add the ward names using Adobe Photoshop.

Once you get used to using Google Fusion Tables, they are a fast and easy way to visualise your data.

Top Ten Tools for Data Journalism

Data journalism is ever-evolving and so are the tools of the trade. Aside from Microsoft Excel (which I’ve blogged about here and here), these are the tools which are, in my opinion, the most useful for data journalism at the moment.

Google Fusion Tables
The gateway drug for most data journalists, Google Fusion Tables is a user-friendly mapping tool which allows users to upload their data to the application, select the columns of data they would like to map and simply create the map. It also allows users to pinpoint various areas on the map which can be interacted with to show, for example, the name of and data for that particular street when exploring the map.

Treemap
TreeMap provides an easy, yet extremely powerful means of creating beautiful treemaps for analytical and presentation purpose. Importing data from a wide variety of file formats (including Excel), as well as connecting to databases (such as MySQL and SQL Server) it’s user friendly and scales to big data.

BatchGeo
BacthGeo is free and user-friendly data-mapping software, which allows users to copy and paste data from their spreadsheets in order to map it. You can also visualise patterns in the data by location and store your data within the site with BatchGeo pro.

Tiki-Toki
Slightly more obscure than some other data journalism tools, Tiki-Toki is a good example of the timeline visualisation software out there. It comes with loads of features including date formatting options, built-in search and filtering, spacing modes and four different view types – and the finished products are visually stunning.

Datawrapper
Datawrapper is a free software tool which enables users to create charts and graphs and embed them into blog posts or elsewhere online. It can be used on their free hosted service or self-hosted and the finished charts and graphs are fully customisable in terms of fonts, colours and design. Datawrapper is easy to use, simple and the finished charts have a slick look and feel.

PopIt
PopIt is an opensource website created by MySociety, which aims to become a website of ‘components’ for open data. Taking inspiration from their previous websites such as TheyWorkForYou, PopIt’s creators state that contributors to the site will not need to know code. While they provide data from various organisations, they aim for data contributions to the site including bills, legislation and attendance records to create a fully functioning transparent-data website.

Tableau
Tableau is another, slightly more advanced data mapping tool using geocoding technology, so there is no need for latitude or longitude data. As well as built-in geocoding, it also has custom geocoding for advanced ‘geospatial analysis’, and can add added layers of data, such as demographic information, and integration with other specialised maps.

Colour Scheme Designer
When creating your data visualisations, it’s important to remember that some people are colour blind so the entire effect will be lost on them if you select the wrong colours. (The most common types of colour blindness are green/red and blue/yellow). Tools such as Colour Scheme Designer allow you to tailor your visualisations by exporting colour pallets via html, URL, CSV, text or XML and you can select specific colour pallets even according to the varying types of colour blindness.

Many Eyes
Many Eyes is a data visualisation tool which allows the advanced creation of graphs, pie charts, word clouds, treemaps and so on, but it is an opensource platform so once you’ve created something, it is archived within the site. This does mean, however, that you can explore data sets and visualisations, create a topic centre and comment on other users’ work.

Google refine
For the slightly more advanced data journalist, Google Refine is a power tool for cleaning up messy data before you can go on to visualise it. It works by being able to transform between formats, extending to other web services and can link to other databases.



Mapped: England’s cancer prevalence by PCT (2011)

I decided to experiment with Google Fusion Tables after my past Google Heatmap attempts, and create a map which was much more interactive.

I submitted Freedom of Information requests to the Department of Health and other governmental organisations for information on cancer rates by primary care trust (PCT) or other suitable boundary, either as a whole or per 100,000 people.

The Health and Social Care Information Centre (HSCIC) directed me to their cancer data within their data portal, where it was possible to find a breakdown of all cancers by PCT (the latest data being 2011). I uploaded the data onto a Google spreadsheet and created a Fusion Table by selecting the option from Google’s applications menu. I then selected the columns of data I wanted to map and created the map. Under Map of Col 2 > Change map styles, I was able to fiddle with the ‘buckets’ or decimal boundaries which decide the colour of the icons according to their value. I custom-selected the bucket values as the lowest number is 0.6 and the highest 2.8, so they weren’t ascending in whole numbers.

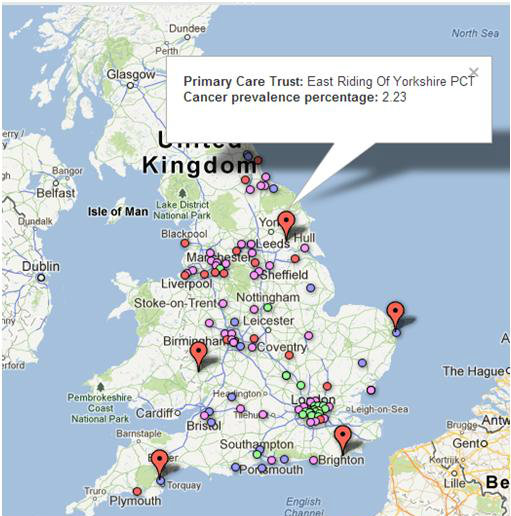

Within the map it is possible to click on the map icons and see a summary of which PCT is located, and what the percentage of cancer prevalence per PCT is. The largest icons represent the highest percentage of cancer prevalence per PCT, and then the coloured icons denote a decreased percentage of cancer prevalence per PCT by blue, red, pink and green respectively.
